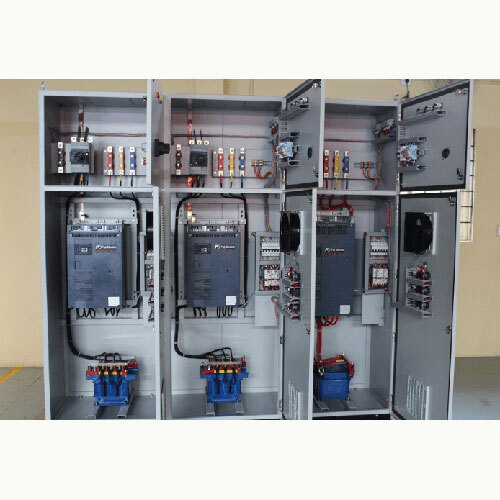

Control Panel

Control Panel Specification

Current Rating
100 A

Rated Insulation Voltage
660 V

Panel Type
Floor Mounted

Features
Corrosion Resistant, Sturdy Construction, Easy Installation

Rated Operation Voltage
400 V

Protection Class
Class I

Way
4 Way

Cabinet Material
Mild Steel

Control System
Manual/Automatic

Operating Voltage
220 - 415 V

Cover Material
Mild Steel

Rated Current
100 A

Base Material
Mild Steel

Connectivity Type
Wired

Protection Level
IP55

Thickness
1.6 mm

Product Type
Electric Panel

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IEC 61439

Surface Color
White

Rated Voltage
415 V

Frequency (MHz)
50 Hz

Maximum Output Current
200 A

Dimension (L*W*H)
800 mm x 600 mm x 250 mm

Warranty
1 Year

Application
Industrial Automation, Power Distribution

IP Rating
IP55

Door Lock Type
Key Lockable

Finishing Treatment
Anti-static Paint

Mounting Type
Floor Standing

Cable Entry
Top/Bottom

Earth Bar
Provided

Gasket
Neoprene, Dust Proof

Incoming/Outgoing
Suitable for Incomer and Outgoing Feeders

Busbar Material
Electrolytic Copper

Conformance
IS Standard

Number of Doors
Single

Panel Weight
28 kg

Ambient Temperature Range
-10°C to +55°C

Passivation
Anti-rust Treatment

Max Output
200 Amps

Control Panel Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Month

Delivery Time
5-25 Days

About Control Panel

Order the grandiose Control Panelengineered for elegance and stellar performance in industrial automation and power distribution. Its magnificent single-door, floor-standing design comes with trending features: flexible top/bottom cable entry, anti-rust passivation, a reliable key lock, and sturdy mild steel construction. Equipped with an electrolytic copper busbar and a passivated, powder-coated, white finish for corrosion resistance, it safely handles up to 200 Amps. Dust-proof with a Class I IP55 rating, this control panel guarantees sublime durability, easy installation, and compliance with IS & IEC 61439 standardscrafted for distributors, exporters, manufacturers, and service providers across India.

Versatile Surface and Plant Applications

Explore the broad scope of this Control Panel, meticulously designed for industrial plants and commercial establishments. Suitable for varied surfaces, it ensures magnificent adaptability in control rooms, substations, and manufacturing units. Trending among automation professionals, its engineered robustness allows seamless integration for power distribution across commercial sectors. Order this reliable solution to upgrade your plants operational efficiency and safety, achieving grandiose performance in automated and manual control system applications alike.

FOB Port, Domestic Market, and Secure Packaging

With a strong presence in the export market, our Control Panel is shipped via reliable FOB ports with comprehensive Goods Transport and packaging solutions. We support distribution across Indias main domestic markets, ensuring each panel is safely packed in robust cartons and wooden crating to prevent transit damage. Our transport services provide secure, timely delivery, so you can install your new panel with confidence, whether youre an importer, supplier, or industrial end-user.

FAQs of Control Panel:

Q: How is the Control Panel installed for different industrial environments?

A: The Control Panel features a floor-standing design with easy top and bottom cable entry, making it adaptable for installation in diverse industrial automation and power distribution settings. Its sturdy mild steel construction ensures stability and longevity.

Q: What benefits does the anti-rust passivation and powder coating offer?

A: The anti-rust passivation and powder-coated surface offer enhanced protection against corrosion and environmental wear, prolonging the panels lifespan and maintaining a magnificent appearance, crucial for demanding industrial and commercial applications.

Q: Where is this Control Panel most commonly used?

A: This panel is widely used in plant automation, substations, commercial complexes, and manufacturing facilities across India. Its trendsetting reliability and safety standards make it a grandiose choice for key industrial applications.

Q: What is the process for exporting or transporting the Control Panel?

A: Export units are dispatched via major FOB ports with secure packaging. Goods are transported using dependable logistics services to reach key export and domestic markets efficiently, ensuring safe and timely arrival at your facility.

Q: How does the IP55 rating enhance operational safety?

A: The IP55 rating ensures superior dust protection and resistance to water jets, keeping internal components safe and operational in demanding environments. This protection guarantees reliable, year-round performance and minimizes maintenance costs.
