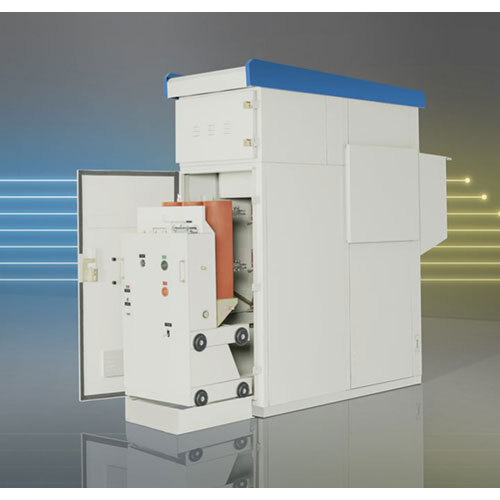

12kv Outdoor lbs

12kv Outdoor lbs Specification

Rated Current
630A

Cover Material
Epoxy Resin

Features
Corrosion resistant, UV protected

Current Rating
630A

Cooling System
Air Natural

Operating Voltage
12kV

Rated Insulation Voltage
28kV

Rated Operation Voltage
12kV

Protection Level
IP65

Panel Type
Outdoor Type

Connectivity Type
Cable Termination

Components
Load Break Switch, Earthing Switch

Thickness
2.5 mm

Control System
Manual or Motorized

Protection Class
Class II

Cabinet Material
Galvanized Steel

Way
3 Way

Base Material
Galvanized Steel

Product Type
Electrical Box

Material
Epoxy Resin

Surface Finish
Powder Coated

Standard
IEC 62271-200

Surface Color
Grey

Rated Voltage
12kV

Frequency (MHz)
50/60 Hz

Maximum Output Current
630A

Dimension (L*W*H)
650x450x1260 mm

Application
Outdoor Distribution

IP Rating
IP65

Display Type
Mechanical Position Indicator

Weight
Approx. 65 kg

Rated Short Time Withstand Current
20kA/3s

Ambient Temperature
-25°C to +40°C

Installation
Pole Mounted or Floor Mounted

Interlocking Device
Provided

Rated Peak Withstand Current
50kA

Mechanical Life
2000 operations

Altitude
Up to 1000m above sea level

12kv Outdoor lbs Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About 12kv Outdoor lbs

The 12kV Outdoor LBS is recognized for its favorable reviews as a top-tier masterpiece in power distribution. Engineered to IEC 62271-200 standards, it boasts a flawless design with a rated short time withstand current of 20kA/3s and peak withstand current of 50kA. Its robust epoxy resin and galvanized steel construction ensures corrosion resistance and UV protection, making it suitable for demanding outdoor conditions. With a mechanical life of 2000 operations, advanced interlocking, and IP65 protection, this is your last chance to buy a reliable, high-performing solution, trusted by distributors, manufacturers, and service providers across India.

Versatility and Features for Demanding Applications

The 12kV Outdoor LBS is masterfully suited for outdoor distribution, with flexible installation on poles or floors. Designed for substations, industrial zones, and urban power networks, it features an interlocking device, mechanical position indicator, and robust epoxy resin construction. Its corrosion resistant, UV protected finish ensures reliable performance, while manual or motorized control adapts to diverse operational needs. With three-way connectivity and secure cable termination, this unit excels as a flawless asset for modern distribution systems.

Global Reach and Professional Export Shipping

Our 12kV Outdoor LBS is highly rated in international markets, with major exports to Asia, Africa, and the Middle East. Clients benefit from competitive FOB port options across India, ensuring optimal expenditure management and secure shipping. Delivery time is streamlined for prompt fulfillment. We are committed to efficiency-each shipment is treated with utmost care, giving clients peace of mind regarding quality and reliability throughout the procurement process.

FAQ's of 12kv Outdoor lbs:

Q: How is the 12kV Outdoor LBS installed for optimal performance?

A: The 12kV Outdoor LBS is designed for flexible installation and can be either pole mounted or floor mounted, depending on the application site's needs. This adaptability ensures optimal performance in a range of outdoor environments.

Q: What key features make this LBS stand out in outdoor applications?

A: Its IP65 protection, corrosion resistance, UV protection, and robust epoxy resin construction make it ideal for outdoor distribution, protecting against harsh weather conditions and environmental hazards.

Q: Where is the 12kV Outdoor LBS most commonly used?

A: This switch is commonly used in substations, industrial premises, and urban distribution systems where reliable medium-voltage switching and safety are essential.

Q: What is the process for ordering and export delivery?

A: Clients can request a quote, after which shipment is arranged via secure shipping from major FOB ports in India, ensuring timely and reliable delivery globally.

Q: When should regular maintenance be conducted for maximum longevity?

A: Regular inspections and maintenance should be performed in alignment with the recommended operational guidelines, typically after a set number of operations or annually, to ensure continued flawless performance and safety.
